  • Water softening cartridge filter PZF 200

Water softening cartridge filter PZF 200




When connected to the water supply system, the softening cartridge filters are used to produce softened water, total hardness below 0.1 mmol/l.

The devices are used in filling smaller and medium hot water central heating systems with softened water. They can be applied in households as well to soften water for automatic washing machines.

As soon as the specified quantity of water (see diagram) has been treated, or if a conductivity limit has been reached, the filter cartridge containing the exhausted ion exchanger can be replaced with a new cartridge in a simple way. To detect the period of renewal, a chemical analysis of water must be taken. The professional recovery of the cartridge is provided by the manufacturer. The cartridges circulate in a one-for-one system.

Example: The total hardness of the supply water is 1.5 mmol/l. Renew your cartridge after 11,000 l of water has been filtered (to be read on a water meter).

Features:
  •  Permanent flow 300 l/h
  •  Immediate flow 1,800 l/h
  •  Maximum pressure: 0.6 MPa
Supply:
  •  Cartridge filter with a cartridge and a filler
  •  Water meter
Special acessories:
  •  Conductivity metering device
  •  Spare cartridge

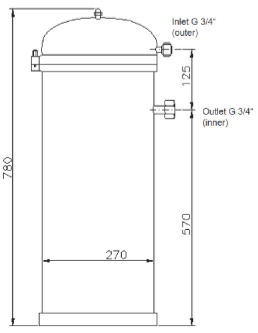

Drawing

filtr schema

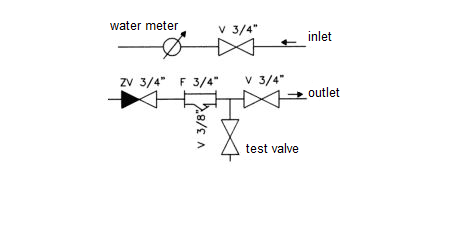

Recommended connection scheme

pdf pzf diagram en

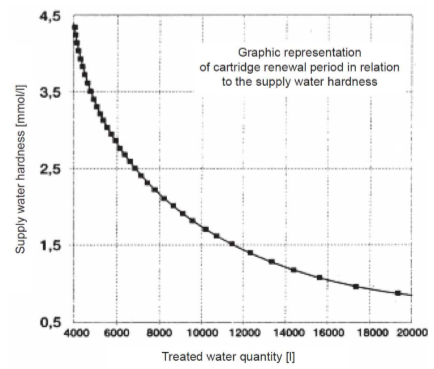

Graph

filtr pzf 200


DWG Download
